Pearl Shallow Well Pumps

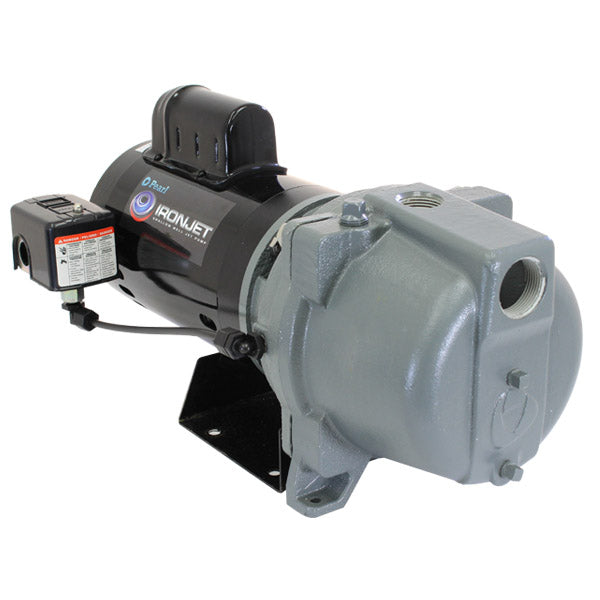

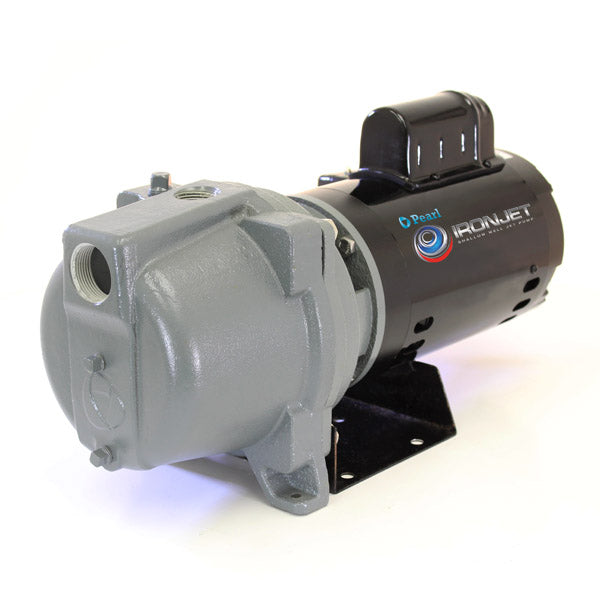

IRON JET is a self priming jet pump, after the first priming the pump will never need to prime again. The pump design and features guarantees complete customer satisfaction, such as:
- All components were carefully manufactured to assure the best performance and reliability.
- IRON JET’s construction is suitable for outdoor applications.
- IRON JET comes equipped with PEARL pressure switch for quick installation.
IRONJET WATER PUMP APPLICATIONS
- Supplying domestic water supply out of a well at desirable pressure
- Lifting water containing air or other gases
- Boost pressure from flooded suction applications
- For garden use
IRONJET WATER PUMP OPERATING CONDITIONS
- Liquid temperature: 32 °F to 150 °F
- Maximum working pressure: 125 PSI
- Continuous duty
IRONJET WATER PUMP CONSTRUCTION
- Closed coupled self-priming centrifugal pump
- High quality components for domestic water supply and irrigation in respect to low lead requirements
- Connections threaded ports NPT
- All hardware in Stainless Steel
- Pre-drilled priming port with plug
- Pre-drilled drain port with plug for maintenance
- U shape base on all models gives a complete full support to the pump
IRONJET WATER PUMP MOTOR
- Nema Standard ODP 56J motors for much cooler surface temperature
- Thermal overload protection
- Capacitor start, capacitor run type motor for the ½ - ¾ Hp versions
- Permanent Split Capacitor (PSC) without centrifugal switch for the 1 - 1½ Hp versions
- Front bearing 6204 for much longer life span
- All copper winding
- Class F Dupont Nomex Insulation System, cCSAus approved
- Single phase ½ - ¾ - 1 - 1½ Hp, 115/230 V
- Easy voltage conversion
- Maximum ambient temperature admitted: 40 °C (104 °F)
IRONJET WATER PUMP Assembled With
