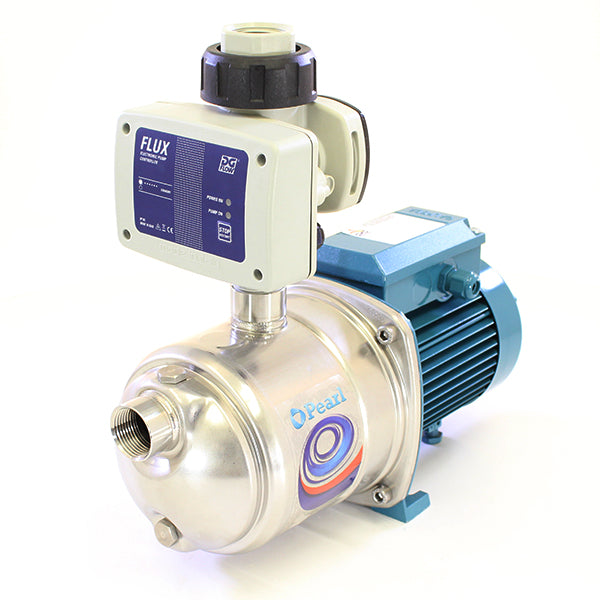

FBSMS05 15G30P - Easy Pump Systems

How it works: When the pressure available is insufficient it is necessary to install a boosting system. The FLUX Boosting System monitors the flow rate of the water running through and protects the pump against dangerous working conditions like running dry.Starts and stops according to the user’s needs.

It replaces the traditional pressure switch/tank systems, offering more advantages such as:

• Easy installations.
• Reduced dimensions.
• Constant flow.
• Very low maintenance required.
• No need to install pressure tanks.
• Pump protection against running dry, with automatic reset


When a tap is opened and the water demand exceeds the minimum starting flow, FLUX starts the pump and keeps it running, delivering constant flow, even when capacity request is low. FLUX Boosting System stops the pump when the
demand is below 0.5 gal/min.

In case of a leak on the system (less than 0.5 gal/min) FLUX Boosting System will never start the pump avoiding useless power consumption.

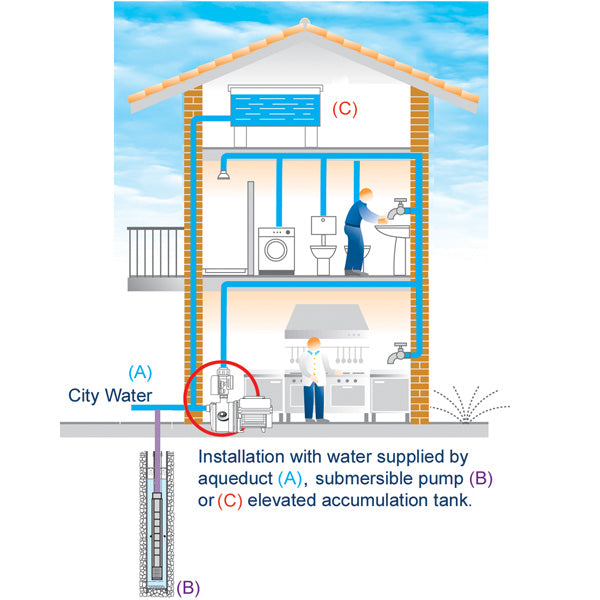

Residential irrigation applications when is necessary to boost the pressure coming from the city water or a well pump.

FEATURES AND BENEFITS

• Available with different pumps to boost incoming pressure up to 70 psi higher
• Built-in check valve
• Friction losses extremely low: use up to 50 gpm
• Circuit board: easy to replace and available in 115V and 230V
